New Macey Plugs & Receptacles

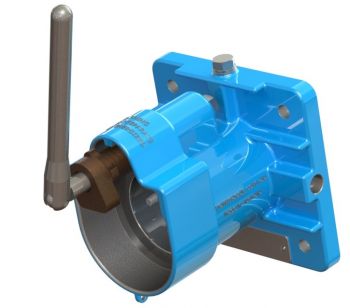

60 Amp Restrained Receptacle - New Macey

  • Technical Specifications
  • Rated Voltage | 660V / 1100V
  • Rated Current | 65 Amp
  • Material | Stainless Steel 304
  • Max. Ambient Temperature | 150oC
  • Conductor Connection | Crimp
  • Weight | 5.5 kg
  • Compliance Standards | AS/NZS Compliant

60 amp Restrained Plug - New Macey

  • Technical Specifications
  • Rated Voltage | 660V / 1100V
  • Rated Current | 65 Amp
  • Material | Stainless Steel 304
  • Max. Ambient Temperature | 150oC
  • Conductor Connection | Grub Screw / Crimp
  • Weight before Termination | 3.9kg
  • Compliance Standards | AS/NZS Compliant

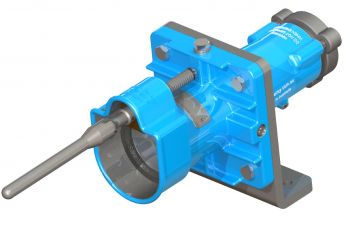

60amp Receptacle Gland and Bracket (RGB) - New Macey

  • Technical Specifications
  • Rated Voltage | 660V / 1100V
  • Rated Current | 65 Amp
  • Material | Stainless Steel 304
  • Max. Ambient Temperature | 150oC
  • Conductor Connection | Crimp
  • Weight before Termination | 7.5 kg
  • Compliance Standards | AS/NZS Compliant

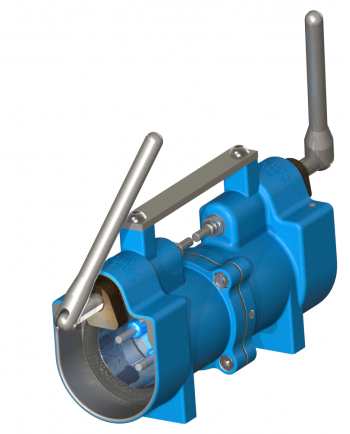

60 amp Restrained Back to Back Receptacle - New Macey

  • Technical Specifications
  • Rated Voltage | 660/ 1000 Volts
  • Rated Current | 60 Amp
  • Material | Stainless Steel 304, High Tensile Brass
  • Handle | Removable
  • Assembly Required | None
  • Weight | 6.5 kg
  • Compliance Standards | AS/NZS Compliant

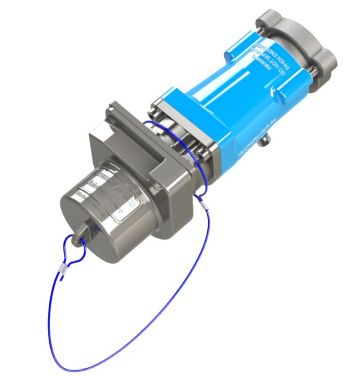

60 Amp Plug Lockable Cover Stainless Steel - New Macey

  • Technical Specification
  • Material: Stainless steel 304
  • Voltage: Fits all 60 Amp plug’s
  • Compliance: AS /NZS 1299
  • Wire rope length: 570mm long

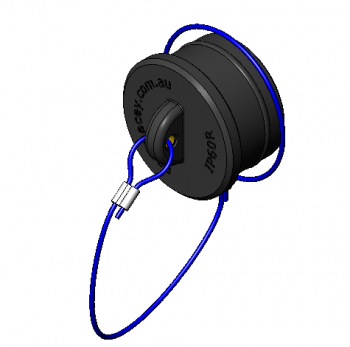

New Macey - 60amp Dust Plug

  • Part Number: NMDP60
    Description: New
  • Macey 60 Amp Dust Plug (for receptacle)

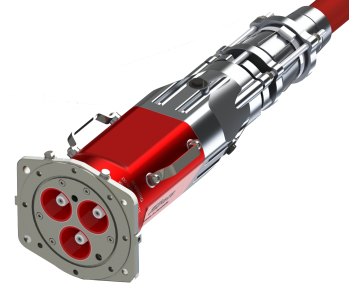

11kV 800amp Aluminium Bolted Coupler New Macey

  • Technical Specifications
  • Rated Voltage | 11,000 Volts
  • Rated Current | 800 Amp
  • Material | Aluminium
  • Cable | Platinum HVPW 120mm2 / 240mm2
  • Conductor Connection | Crimp
  • Weight before Termination | 27 kg
  • Compliance Standards | AS/NZS Compliant

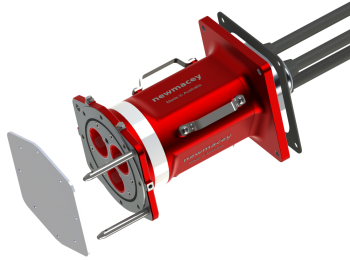

New Macey 800 AMP 11kV Bolted Adaptor With Cable - Aluminium

  • Technical Specifications
  • Rated Voltage | 11,000 Volts
  • Rated Current | 800 Amp
  • Material | Aluminium
  • Cable | Platinum HVPW 120mm2 / 240mm2
  • Conductor Connection | Crimp
  • Weight before Termination | 27 kg
  • Compliance Standards | AS/NZS Compliant

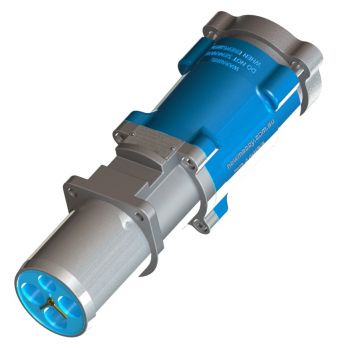

150 Amp Restrained Plug - New Macey

  • Technical Specifications
  • Rated Voltage | 660V / 1100V< br> Rated Current | 150 Amp
  • Material | Stainless Steel 304
  • Max. Ambient Temperature | 150oC
  • Conductor Connection | Grub Screw / Crimp / Solder
  • Weight before Termination | 5.5 kg
  • Compliance Standards | AS/NZS Compliant

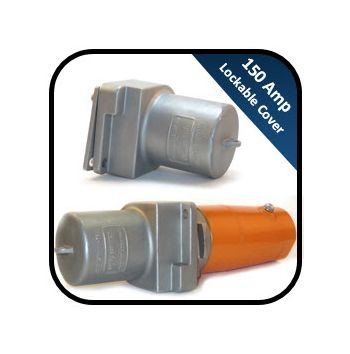

150 Amp Lockable Cover Stainless Steel

  • Technical Specification’s
  • Material: Stainless Steel 304
  • Voltage: Fits all 150 Amp Plug’s
  • Compliance: AS / NZS 1299
  • Wire Rope Length: 700mm long
